Home > RC903S

Special Design for Rehearsal standby

Efficient Power Saving

AAA Alkaline Battery 3 pcs / Working Time - 10 hours / Standby - Over 100 hours

Large Space for Logo Printing

Acrylic and Handle

16 Standard colors
Available for Customized
your exclusive color
Click to see the different color light color

Special Design
Battery Power testing

To make sure battery have enough power for the show

The final power test unique to Rock Cells. Two hours before the show, a signal is sent to the light stick. The power is sufficient to display orange, the power is insufficient to display red.

Push Button
Insulator
Battery Space
Sling Hole

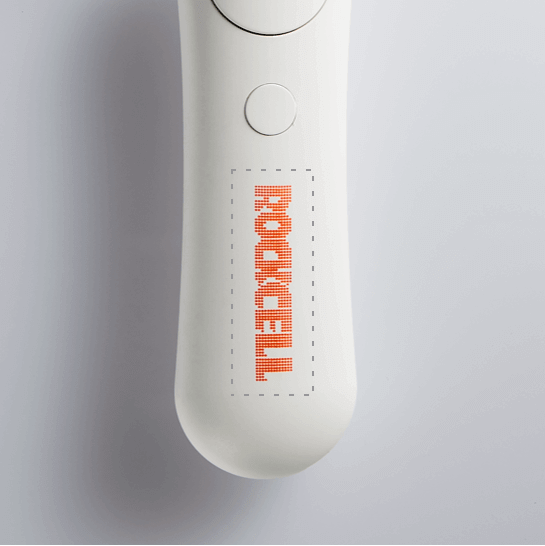

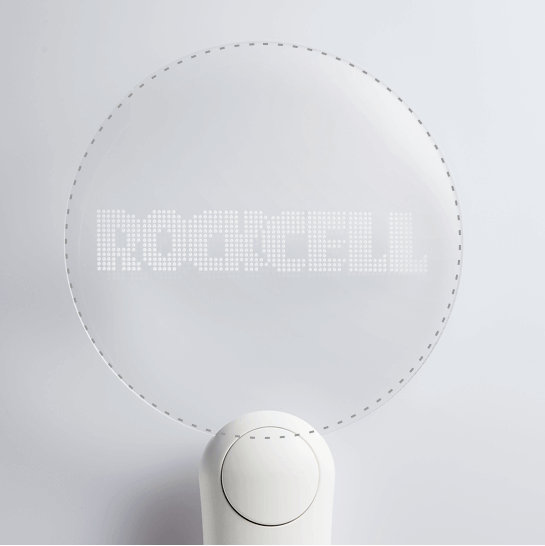

Available to customize on Acrylic ID and graphic printing
Logo printing location:20*55mm

Dimension

Acrylic
Diameter:110mm
Material:Acrylic
Handle
Length:120mm
Width: 35mm
Material:ABS

Specification

Main chip
8 Bit MCU + RF Transceiver
Radio frequency
2.4GHz
Mode
Wireless / Manual / Mapping / Detection / Standby / Testing
Body
ABS 120 x 35mm
Strap
Transparent Acrylic 110mm
LED
DIP RGB LED x 1
Color
Built-in 16 colors
1. orange 2. grass green 3. deep pink 4. water blue 5. purple blue 6. bright pink 7. gold 8. spring green 9. red 10. green 11. blue 12. yellow 13. peach red 14. cyan-blue 15. white 16. black
Power
Insulating
Button
Color / Frequency / Basic effect
NFC
Unavailable
Battery
Alkaline battery AAA x 3
Distance
500m Max
0perating hours
10h
Environment
ROHS
Regulation
SRRC FCC CE NCC

Instruction

Power
On
Pull out insulator on the battery cover.Breath orange three times, orange keep.

Off
Insert Insulator on the battery cover
Mode
Wireless
When wireless console start to work, wristband manual mode will be stop to work and go to wireless mode automatically. When wireless mode stop, wristband need to re-power on, then it can recover to manual mode.

Manual
Brief Press - color change, colors sequence cycling as 1. orange 2. grass green 3. deep pink 4. water blue 5. purple blue 6. bright pink 7. gold 8. spring green 9. red 10. green 11. blue 12. yellow 13. peach red 14. cyan-blue 15. white 16. black.

Press 1.5 Sec - frequency change, Frequency cycling as 1. Keep 2. Slow 3. Fast 4. Flash 5. Breath 6. Fade

Mapping
Power on, go mapping automatically, breathe tree times. If no code command is received, enter the manual control mode.

Detection
The wireless control device sends a detection command. Red light keep means low power, blue light keep means high power.

Standby
The wireless control device issues a standby command. The wristband will flash for every 10 Sec.
Precautions
Remove insulator and enter the working state. Even if there is no light, the power supply continues to work, so please keep the insulation sheet properly. Please insert insulator after use.

Please use alkaline AAA batteries.Do not disassemble randomly. Do not throw it into fire. Ignoring the warning may cause battery explosion.

Packaging Information

Project Battery Package Package dimensions Net weight Gross weight Qty Carton size Net weight Gross weight
1 Yes OPP+Paper Card 250 x 138mm 104g 127g 100 518 x 358 x 282mm 11.3 kg 11.8 kg
2 No OPP+Paper Card 250 x 138mm 79g 90g 100 518 x 358 x 282mm 9 kg 9.5 kg
3 Yes Blister 280 x 140 x 25 mm 104g 185g 90 570 x 400 x 435mm 17 kg 17.6 kg
4 No Blister 280 x 140 x 25 mm 79g 153g 90 570 x 400 x 435mm 14 kg 14.6 kg
