Maximum
Brightness Area

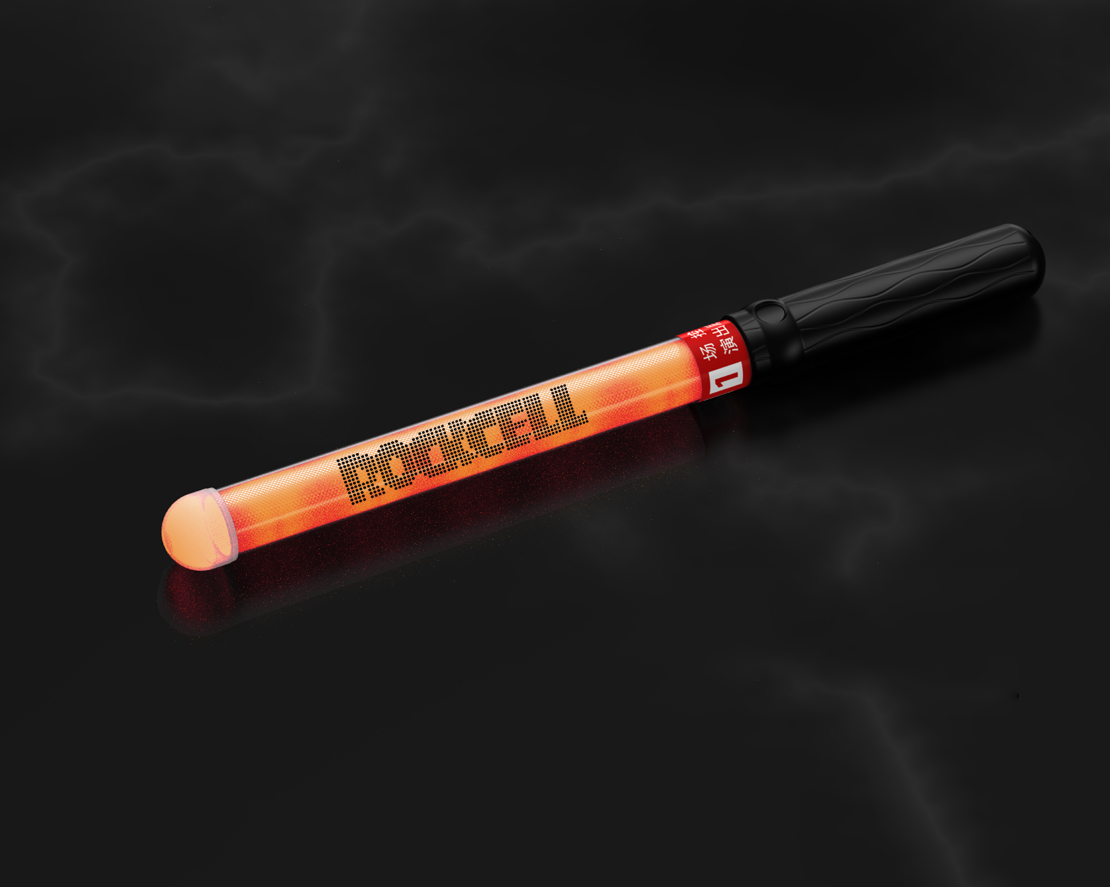

Cell Lightstick-RC805
Traditional templates
Large luminous area
Suitable for all kinds of concerts, events, etc.

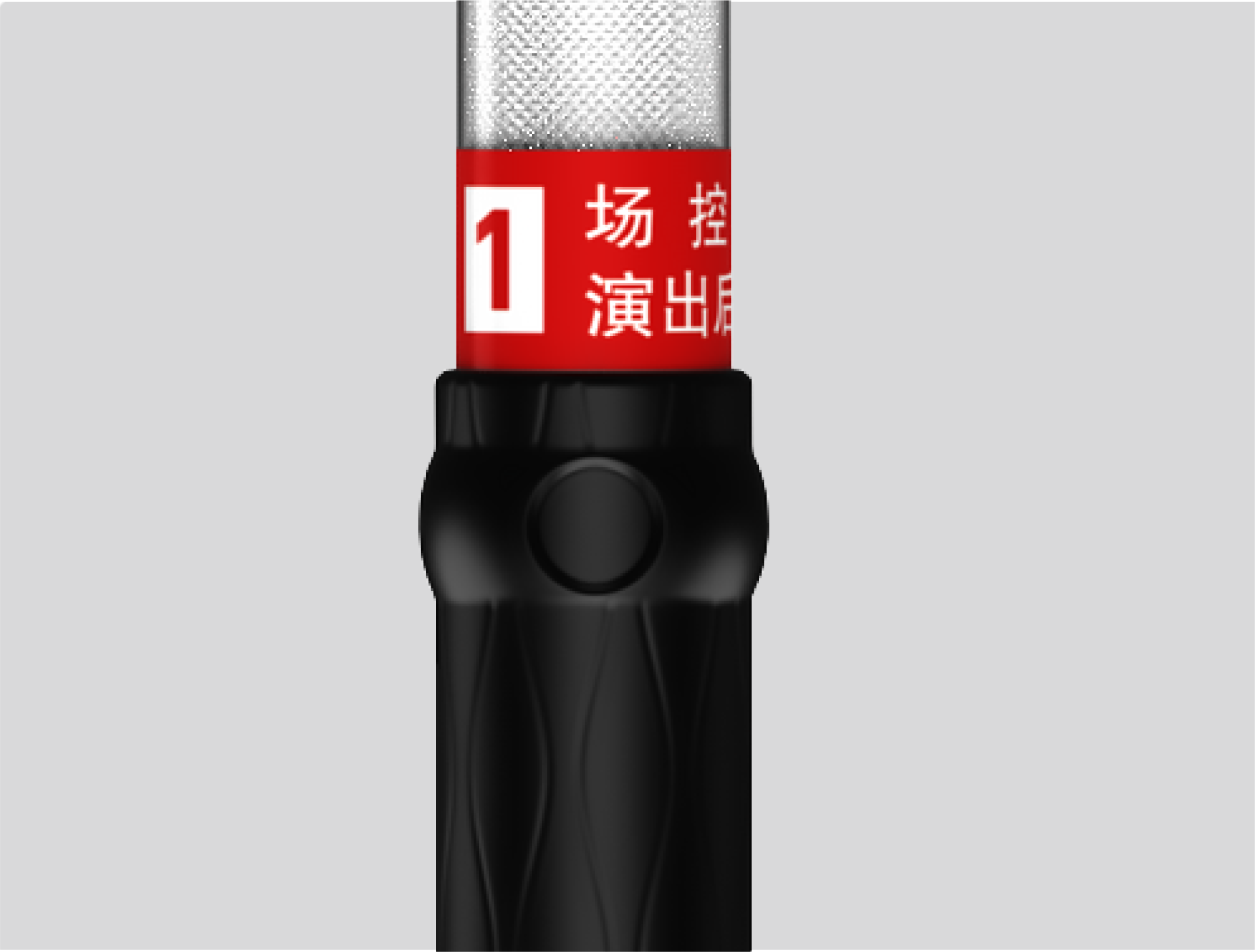

Push button switch
Press and hold the button for 3 seconds to turn on the light stick, and press and hold the button for 3 seconds to turn off the light stick.
16 standard colors
Customizable colors
Customizable colors
Click on the color block to view different luminous colors
Unique
Power test
Make sure the product has enough power during the performance
Rock Cell's unique power test sends a signal to the light sticks two hours before the performance. If the power is sufficient, it will be displayed in orange, and if the power is insufficient, it will be displayed in red. The power situation can be clearly seen at a glance to ensure a smooth performance.
Reflective paper
Sticker Location

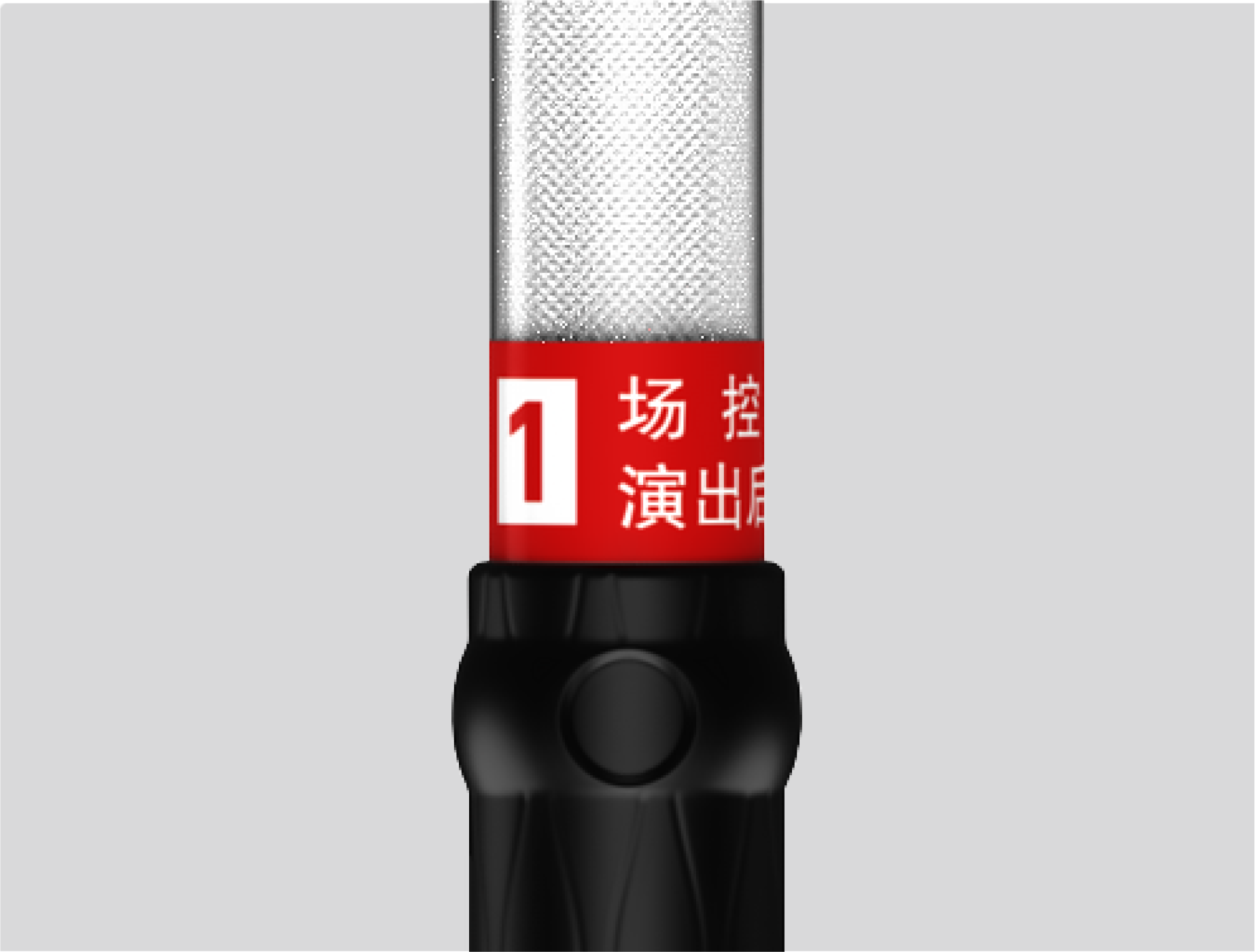

Pushbutton switch

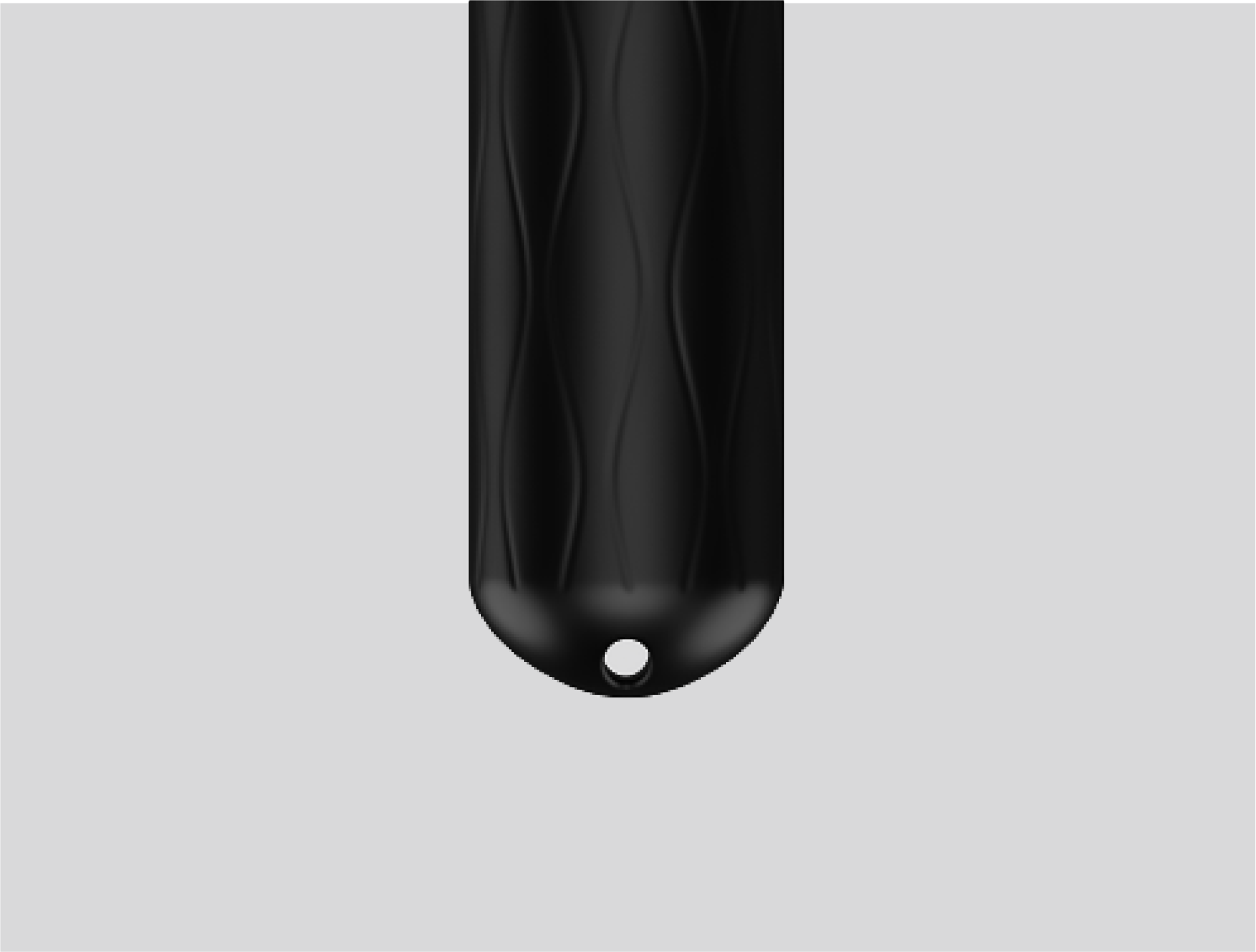

Lanyard hole
Size
Size
Total length: 350mm
Diameter: 32mm
Material
Material: Top cover: PE transparent tube
Luminous part: reflective paper (silk screen LOGO)
Handle: ABS
Button: ABS
goods_805DimensionMaterialData5
Specification
Main chip
32 Bit MCU + RF transceiver
Radio Frequency
2.4GHz
goods_805sSpecificationMode
Wireless/Manual/Pairing/Detection/Standby/Rehearsal
Body
ABS plastic + PE transparent tube + customized acrylic sheet
LED
8*15mm LED_RGB_1Wx3
Color
Built-in 16 colors
1. Orange, 2. Grass green, 3. Dark pink, 4. Aqua blue, 5. Purple blue, 6. Bright pink, 7. Gold, 8. Spring green, 9. Red, 10. Green, 11. Blue, 12. Yellow, 13. Pink, 14. Cyan, 15. White, 16. Black.
Switch
button
Color Transformation
button
good_805SpecificationNFC
Not supported
Battery
Alkaline batteries AAA*3
Distance
500m
Working hours
8 hours
Environmental friendly
ROHS
Regulations
SRRC FCC CE NCC
Instructions
Switch
Power on
Press and hold the button for 3 seconds.
Shutdown
Press and hold the button for 3 seconds.
Model
Field Control
When the wireless control device starts working, the manual mode will stop working and the bracelet will automatically enter the field control mode. When the field control mode ends, restart the power and enter the manual mode.
Manual
The color cycle order of the button color change is: 1. Orange, 2. Grass green, 3. Dark pink, 4. Water blue, 5. Purple blue, 6. Bright pink, 7. Gold, 8. Spring green, 9. Red, 10. Green, 11. Blue, 12. Yellow, 13. Pink, 14. Cyan, 15. White, 16. Black.
Code
The device will automatically enter the pairing mode after powering on, and breathe three times. If no pairing command is received, it will enter the manual mode.
Battery detection
The wireless control device sends a power detection command. The red light stays on to indicate low power, and the blue light stays on to indicate sufficient power.
Standby
The wireless control device sends a standby command and the bracelet flashes once every 10 seconds.
Remind
Be sure to confirm the positive and negative directions of the battery before installing it. Please take out the battery after use to prevent the machine from continuing to power on.
Please use alkaline AAA batteries, do not disassemble them at will, and do not throw them into fire. Ignoring warnings may cause the batteries to explode.
Please use alkaline AAA batteries, do not disassemble them at will, and do not throw them into fire. Ignoring warnings may cause the batteries to explode.
Packaging Information
| Project | Battery | Package | Package dimensions | Net weight | Gross weight | Qty | Carton size | Net weight | Gross weight |
|---|---|---|---|---|---|---|---|---|---|
| 1 | Yes | OPP | 360 x 35 x 35mm | 82g | 85g | 232 | 570 x 400 x 435mm | 19.02 kg | 19.72 kg |
| 2 | No | OPP | 360 x 35 x 35mm | 48g | 50g | 232 | 570 x 400 x 435mm | 11.13 kg | 19.72 kg |
