Home > RC905+

Maximum
Brightness Area

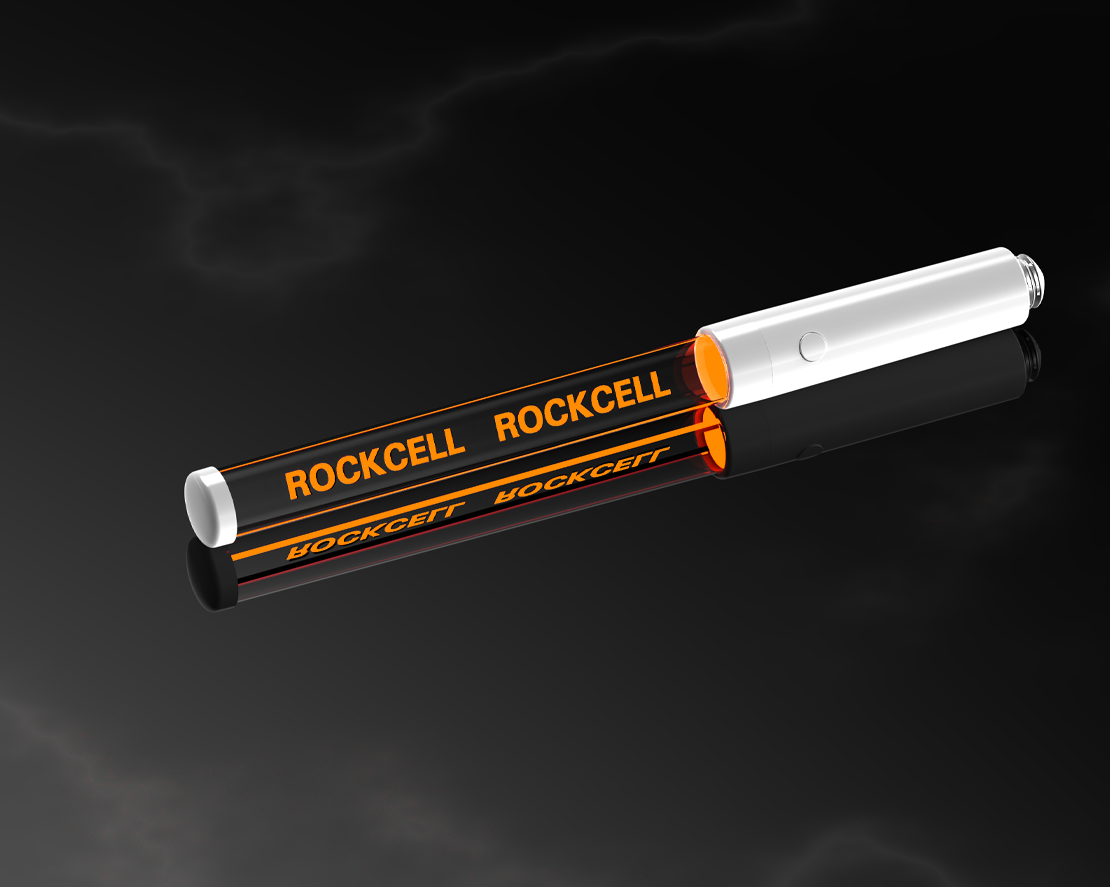

Cell Lightstick-RC905+

Tradition Model

Maximum Brightness Area

Suitable for Concert, Event...

Turn on and off

Press and hold the button for 3 seconds to turn on the fluorescent stick, and press and hold the button for 3 seconds to turn off the fluorescent stick

16 Standard colors
Available for Customized your
exclusive color
Click to see the different color light color

Special Design
Battery Power testing

To make sure battery have enough power for the show

The final power test unique to Rock Cells. Two hours before the show, a signal is sent to the light stick. The power is sufficient to display orange, the power is insufficient to display red.

PMMA
Knob
QR code location
Button Location

Dimension

Size
Length:328mm
Handle Diameter:30.5mm
Material
Top Cover:PE transparent pipe
light-emitting part:PMMA
Handle:ABS
Bottom:ABS+silver spray paint
goods_905sDimensionMaterialData5

Specification

Main chip
32 Bit MCU + RF transceiver
Radio frequency
2.4GHz
Mode
Wireless / Vibration / Mapping / Detection / Testing
Body
ABS + Transparent PE Tube + PMMA
LED
8*15mm LED_RGB_1Wx3
Color
Built-in 16 colors
1. orange 2. grass green 3. deep pink 4. water blue 5. purple blue 6. bright pink 7. gold 8. spring green 9. red 10. green 11. blue 12. yellow 13. peach red 14. cyan-blue 15. white 16. black
Switch
Button
Color Change
Button
NFC
Unavailable
Battery
Alkaline battery AAA x 3
Distance
500m Max
0perating hours
8h
Environment
ROHS
Regulation
SRRC FCC CE NCC

Instruction

Power
On
Hold the button for 3 second

Off
Hold the button for 3 second
Mode
Wireless
When wireless console start to work, wristband manual mode will be stop to work and go to wireless mode automatically. When wireless mode stop, wristband need to re-power on, then it can recover to manual mode.

Vibration
Vibration - color change, colors sequence cycling as 1. orange 2. grass green 3. deep pink 4. water blue 5. purple blue 6. bright pink 7. gold 8. spring green 9. red 10. green 11. blue 12. yellow 13. peach red 14. cyan-blue 15. white 16. black.

Mapping
Power on, go mapping automatically, breathe tree times. If no code command is received, enter the manual control mode.

Detection
The wireless control device sends a detection command. Red light keep means low power, blue light keep means high power.

Standby
The wireless control device issues a standby command. The wristband will flash for every 10 Sec.
Precautions
Before installing the battery, make sure to confirm the direction of the positive and negative poles. After use, please remove the battery to prevent the machine from continuously supplying power.

Please use alkaline AAA batteries.Do not disassemble randomly. Do not throw it into fire. Ignoring the warning may cause battery explosion.

Packaging Information

Project Battery Package Package dimensions Net weight Gross weight Qty Carton size Net weight Gross weight
1 Yes OPP 360 x 35 x 35mm 82g 82g 232 570 x 400 x 435mm 19.02 kg 19.72 kg
2 No OPP 360 x 35 x 35mm 48g 50g 232 570 x 400 x 435mm 11.13 kg 12.2 kg
