Home > RC901W

Special Design for
Rehearsal standby

Efficient Power Saving

Large Space for
Logo Printing

Top cover and Battery

16 Standard colors
Available for Customized
your exclusive color
Click to see the different color light color

Special Design
Battery Power testing

To make sure battery have enough power for the show

The final power test unique to Rock Cells. Two hours before the show, a signal is sent to the light stick. The power is sufficient to display orange, the power is insufficient to display red.

Function Button
Insulator

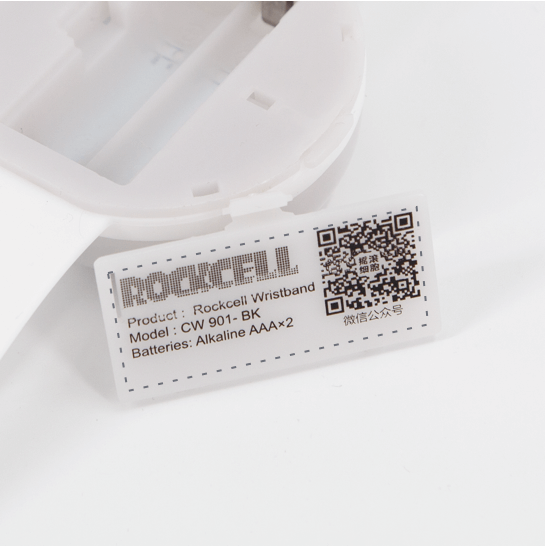

Battery Location
Wristband Strap
Printing location on Top Cover :40 x 40mm
Printing location on Battery Cover :15.5 x 14.7mm

Dimension

Body
Diameter:60.00mm
Thickness:21.81mm
Material:ABS
Strap
Width:244.68mm
Length:24.00mm
Material:Silicon + ironware

Specification

Main chip
8 Bit MCU + RF Transceiver
Radio frequency
2.4GHz
Mode
Wireless / Manual / Mapping / Detection / Standby / Testing
Body
ABS 60mm (diameter) x 22mm (height)
Strap
Silicon 245mm
LED
5050 SMD RGB LED x 3
Color
Built-in 16 colors
1. orange 2. grass green 3. deep pink 4. water blue 5. purple blue 6. bright pink 7. gold 8. spring green 9. red 10. green 11. blue 12. yellow 13. peach red 14. cyan-blue 15. white 16. black
Power Switch
Insulating
Button
Color / Frequency / basic effect
NFC
Available ( Option )
Battery
Alkaline battery AAA * 2
Distance
500m Max.
0perating hours
8h
Environment
ROHS
Regulation
SRRC FCC CE NCC

Instruction

Power on/off
On
Pull out insulator on the battery cover, go mapping automatically. Breathe orange three times, enter standby A.

Off
Insert Insulator on the battery cover
Mode
Wireless
When wireless console start to work, wristband manual mode will be stop to work and go to wireless mode automatically. When wireless mode stop, wristband need to re-power on, then it can recover to manual mode.

Manual
Brief Press - color change, colors sequence cycling as 1. orange 2. grass green 3. deep pink 4. water blue 5. purple blue 6. bright pink 7. gold 8. spring green 9. red 10. green 11. blue 12. yellow 13. peach red 14. cyan-blue 15. white 16. black.

Press 1.5 Sec - frequency change, Frequency cycling as 1. Keep 2. Slow 3. Fast 4. Flash 5. Breath 6. Fade.

Mapping
Power on, go mapping automatically, breathe five times. If no code command is received, rnter the manual control mode.

Detection
The wireless control device sends a detection command. Red light keep means low power, blue light keep means high power.

Standby
The wireless control device issues a standby command. The wristband will flash green every 5 Sec.
Precautions
Remove insulator and enter the working state. Even if there is no light, the power supply continues to work, so please keep the insulation sheet properly. Please insert insulator after use.

Please use alkaline AAA batteries.Do not disassemble randomly. Do not throw it into fire. Ignoring the warning may cause battery explosion.

Packaging Information

Project Battery Package Package dimensions Net weight Gross weight Qty Carton size Net weight Gross weight
1 Yes OPP 90 x 110 x 25mm 66g 67g 300pcs 407 x 353 x 404mm 19.8kg 20.96kg
2 No OPP 90 x 110 x 25mm 46g 47g 300pcs 407 x 353 x 404mm 13.2kg 14.36kg
3 Yes Blister 31 x 7.5 x 28 mm 66g 115g 150pcs 630 x 385 x 435mm 9.9kg 17.96 kg
4 No Blister 31 x 7.5 x 28 mm 46g 95g 150pcs 630 x 385 x 435mm 6.6kg 14.96 kg
